DIN Rails (Channel) and Accessories

A Din Rail (Mounting Rail) a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside the equipment racks. The design of Trinity Touch Din Rails (Mounting Rails) complies with European standard EN 60715.
Trinity Touch Din Rails (Channels) are zinc plated & chromate passivated.
Trinity Touch Din Rails (MCB Channels) are available in perforated & Un-perforated.
Trinity Touch Din G Rail (Terminal Channel) is available in slotted & Un-slotted version. Profile Cutter used for cutting standard Din Rails, G Rails 32/15, Din Rails 35/7.5, Din Rail 35/15, Din Rails 15/5.5 and neutral busbars NLS-CU 3/10. Trinity Touch Timers and Interface Modules are designed to be mounted on Din Rails (Channels) that can be fixed easily on panel boards and other equipment. All Trinity Touch Din Rail series TBLS, TDR2 & TDR3 are also available cut to length.

We Serve Delhi NCR, Mumbai, Pune, Chennai, Ahmedabad, Bengaluru, Hyderabad, Kolkata and all other major locations in India.

DIN ‘G’ Rail 32/15

DIN Rail 15/5.5

DIN Rail 35/7.5

DIN Rail 35/15

Universal DIN Rail Cutter

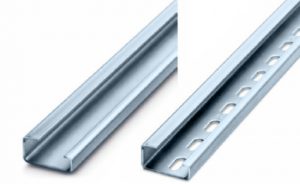

DIN ‘G’ Rail 32/15

TDR3 (Third Generation Passivation)This series of DIN Rail is for industrial application conforming to the European standard EN 60715 with THIRD generation passivation of Cr+ Iridescent color, higher thickness film 300nm~400nm, SST stability of 240Hrs. It has an advantage of being fluoride free, organic acid free and has a low metal concentration and improved corrosion resistance. TDR2 (Second Generation Passivation)This series of DIN Rail has SECOND generation passivation of Cr , silver chromated, higher film thickness of 200nm~400nm SST stability upto 240 Hrs, and improved corrosion resistance as compared to the FIRST generation passivation.

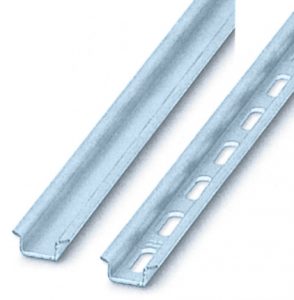

DIN Rail 15/5.5

TDR3 (Third Generation Passivation)This series of DIN Rail 15/5.5 is for industrial application conforming to the European standard EN 60715 with THIRD generation passivation of Cr+ Iridescent color, higher thickness film 300nm~400nm, SST stability of 240Hrs. It has an advantage of being fluoride free, organic acid free and has a low metal concentration and improved corrosion resistance. TDR2 (Second Generation Passivation)This series of DIN Rail has SECOND generation passivation of Cr , silver chromated, higher film thickness of 200nm~400nm SST stability upto 240 Hrs, and improved corrosion resistance as compared to the FIRST generation passivation.

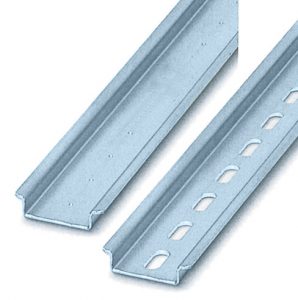

DIN Rail 35/7.5

TDR3 (Third Generation Passivation)This series of DIN Rail 35/7.5 is for industrial application conforming to the European standard EN 60715 with THIRD generation passivation of Cr+ Iridescent color, higher thickness film 300nm~400nm, SST stability of 240Hrs. It has an advantage of being fluoride free, organic acid free and has a low metal concentration and improved corrosion resistance. TDR2 (Second Generation Passivation)This series of DIN Rail has SECOND generation passivation of Cr , silver chromated, higher film thickness of 200nm~400nm SST stability upto 240 Hrs, and improved corrosion resistance as compared to the FIRST generation passivation.

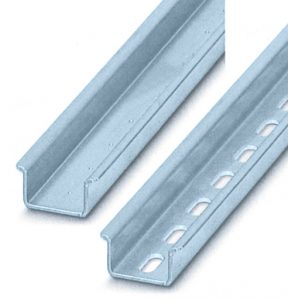

DIN Rail 35/15

TDR3 (Third Generation Passivation)This series of DIN Rail is for industrial application conforming to the European standard EN 60715 with THIRD generation passivation of Cr+ Iridescent color, higher thickness film 300nm~400nm, SST stability of 240Hrs. It has an advantage of being fluoride free, organic acid free and has a low metal concentration and improved corrosion resistance. TDR2 (Second Generation Passivation)This series of DIN Rail has SECOND generation passivation of Cr , silver chromated, higher film thickness of 200nm~400nm SST stability upto 240 Hrs, and improved corrosion resistance as compared to the FIRST generation passivation.

Universal DIN Rail Cutter

UNIVERSAL DIN CUTTER Bench top Profile Cutter with five built in dies for manual cutting of common DIN rails to custom length.Tool is intended for use where multiple DIN rails are to be cut without changing the die.
